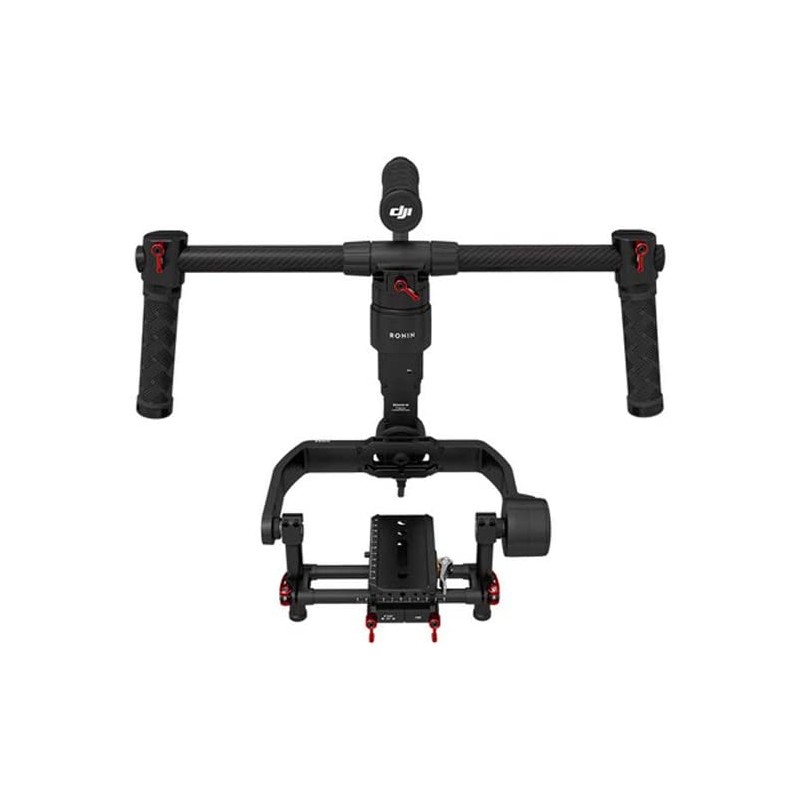

DJI Ronin M

73,20 €
Tasse incluse IVA 22% inclusa - PREZZO di NOLEGGIO / GIORNO

DJI Ronin M

Quantità
CHIEDI SEMPRE LA DISPONIBILITA' per le tue DATE



Consulenza di un tecnico esperto



Cinemobile Scaffalato su Richiesta



Polizza Prodotto in Sostituzione

Maximum depth at center of mass on camera base plate: 120mm
Maximum height measured from top of camera base plate: 195mm
Maximum width: 160mm
Accessory Power Connections 12V Regulated P-Tap x 2, USB 500mW x 1, DJI Lightbridge x 1
GCU Input Power 4S Ronin-M Battery
Connections 2.4GHz Remote Controller, Bluetooth 4.0, USB 2.0
PC Assistant Software Requirements Windows XP SP3; Windows 7; Windows 8 (32 or 64 bit)；Mac OS X 10.9 or above
Mobile Assistant Software Requirements iOS 6.1 or above, Android 4.3 or above

Working Performance

Working Performance

Load Weight (Reference Value) 8lb (3.6kg)
Angular Vibration Range ± 0.02°
Maximum Controlled Rotation Speed Pan axis: 90°/s
Tilt axis: 100°/s
Roll axis: 30°/s
Mechanical Endpoint Range Pan axis: 360°
Tilt axis: +105° to -190°
Roll axis: ± 110°
Controlled Rotation Range Pan axis control: 360°
Tilt axis control: +105° /-190°
Roll axis control: ± 25°
Load Weight (Reference Value) 8lb (3.6kg)
Angular Vibration Range ± 0.02°
Maximum Controlled Rotation Speed Pan axis: 90°/s
Tilt axis: 100°/s
Roll axis: 30°/s
Mechanical Endpoint Range Pan axis: 360°
Tilt axis: +105° to -190°
Roll axis: ± 110°
Controlled Rotation Range

Pan axis control: 360°
Tilt axis control: +105° /-190°
Roll axis control: ± 25°

Mechanical & Electrical Characteristics

Working Current Static current: 300mA (@16V)
Dynamic current: 600mA (@16V)
Locked motor current: Max 10A (@16V)
Run Time 3 hours
Operating Temperature 5° F ~ 120° F (-15° C ~ 50° C)
Weight 2.3kg (5.07lb) fully loaded with handlebar
Gimbal Dimensions 500mm(W) x 210mm(D)x 420mm(H)
DJI Ronin M
1 Articolo
